Sony Remote RMF‑YD003

SONY Refreshed the Industrial Design on their RMF‑YD003 Universal Remote. Supplied with new graphics from their UI designers I made sure everything lined up onto the new design.  I then placed the updated graphics onto the new renderings following the different surfaces and perspectives.

SONY Interactive Entertainment

Above Left : Original Remote. L-R : New Graphics. New Graphics Placement, New Graphics on Artwork Rendering (Vector). Graphics are positioned precisely, supplied from converted linework so this allows for correct placement of graphics on the 3D Renderings in Photoshop.

Requested to create different Colorways of the SONY Remote RMF‑YD003. The 3D Pro-E Data was supplied to the Mechanical Engineering group. They removed the PCB and other internals to speed up the Rendering Process. The 3D Data was supplied to us in .step file and imported into Keyshot. In Keyshot assigned the materials and textures as directed by SONY Marketing. The finished renderings were color corrected to the Pantone Matching System and graphics added.

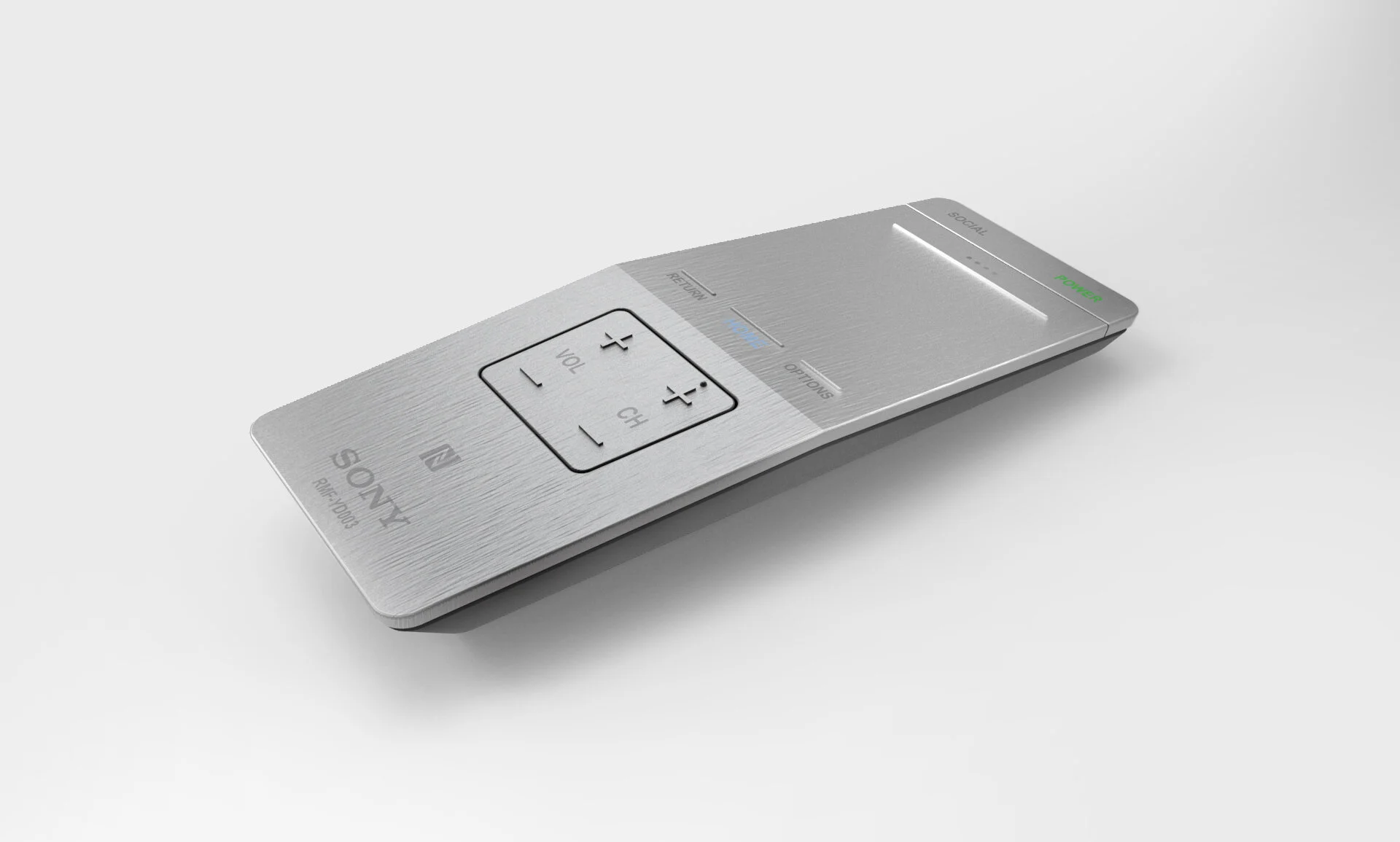

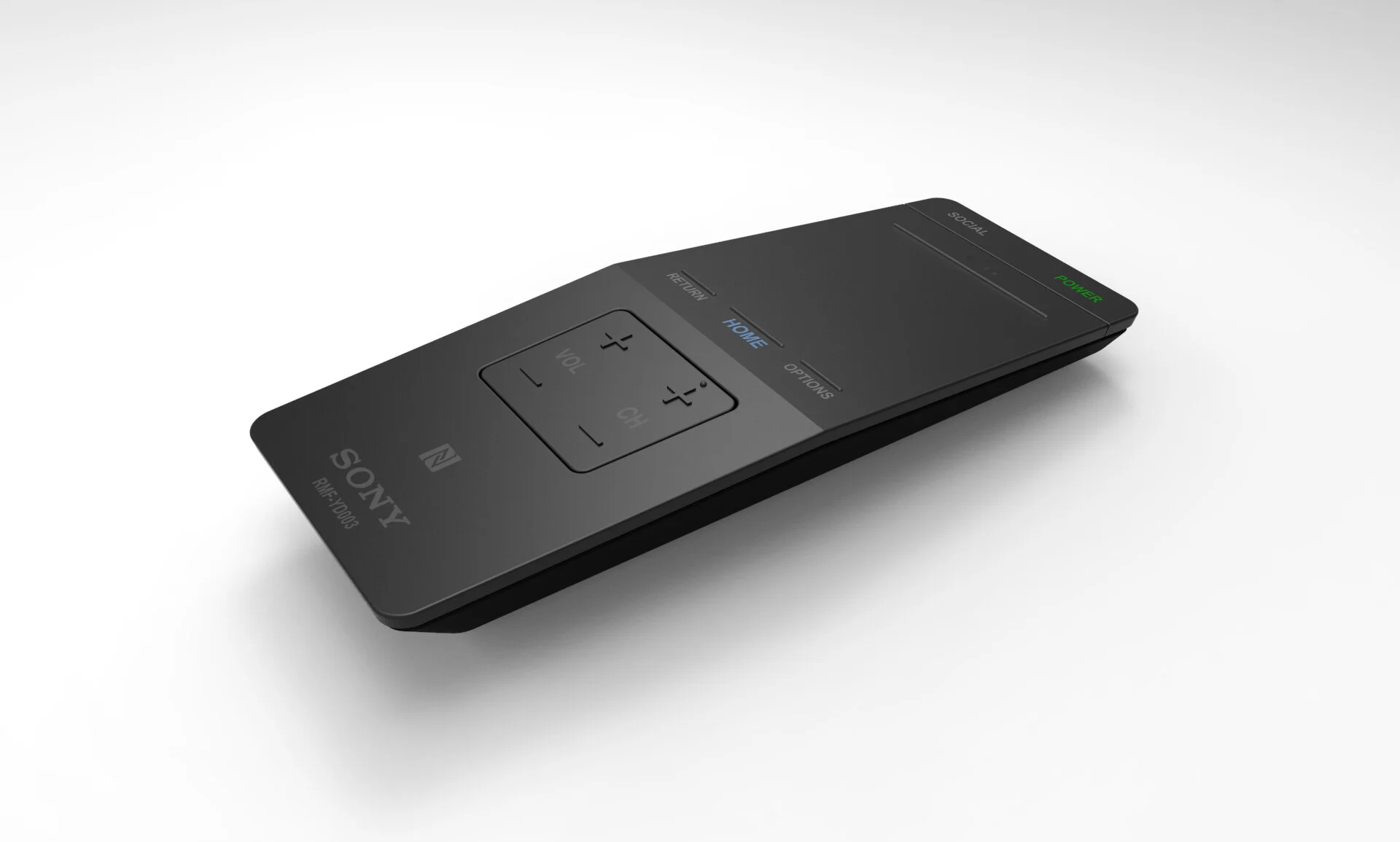

Colors Top Housing : Champagne, Cannonball, Brushed Aluminum, Matte Black ABS, Chrome, Matte Black ABS, Cool Brushed Aluminum, Gun Metallic

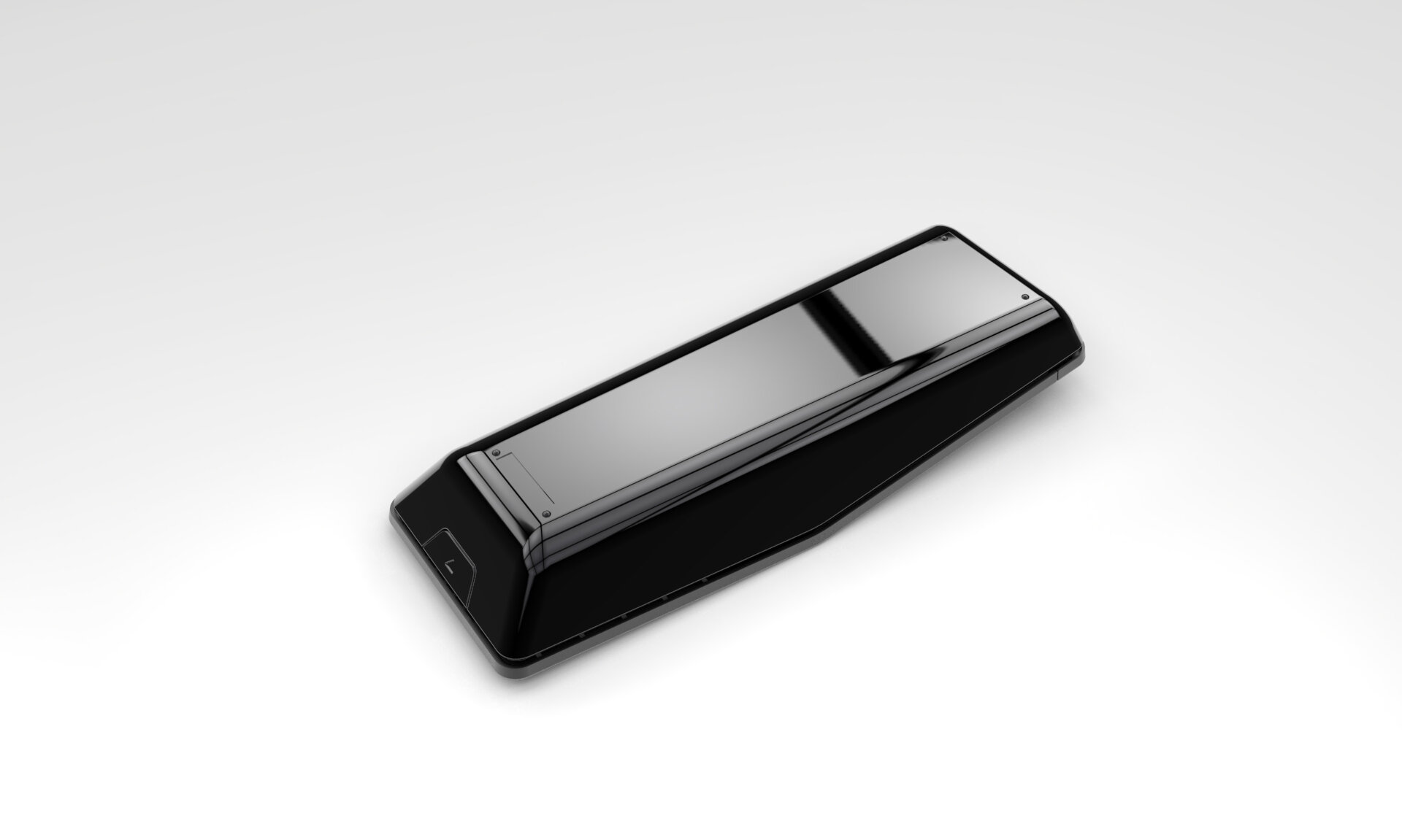

Colors Bottom Housing : Gray High Gloss, White High Gloss, Black Soft Touch, Cool Gray Soft Touch, Gray Matte Soft Touch, Black High Gloss.

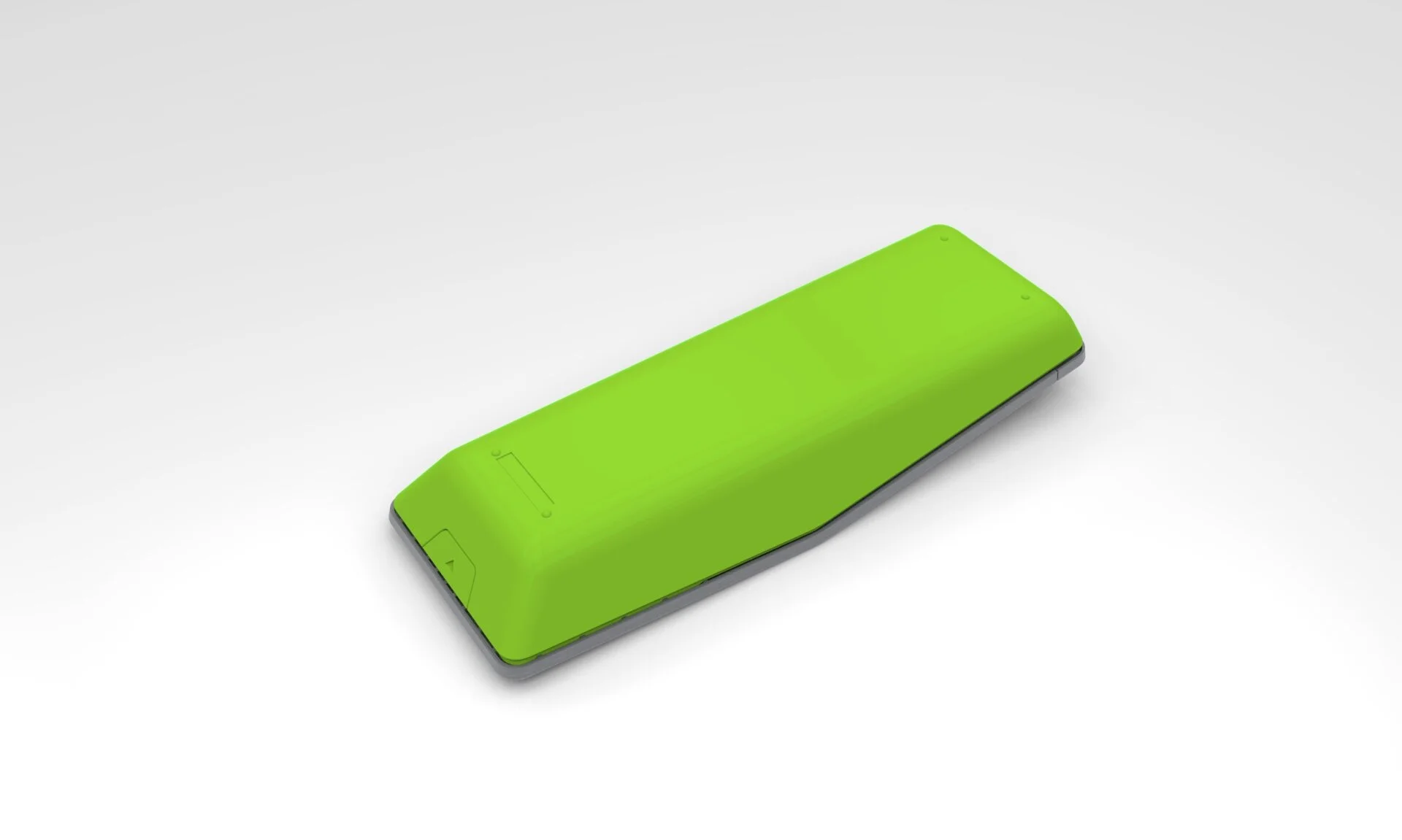

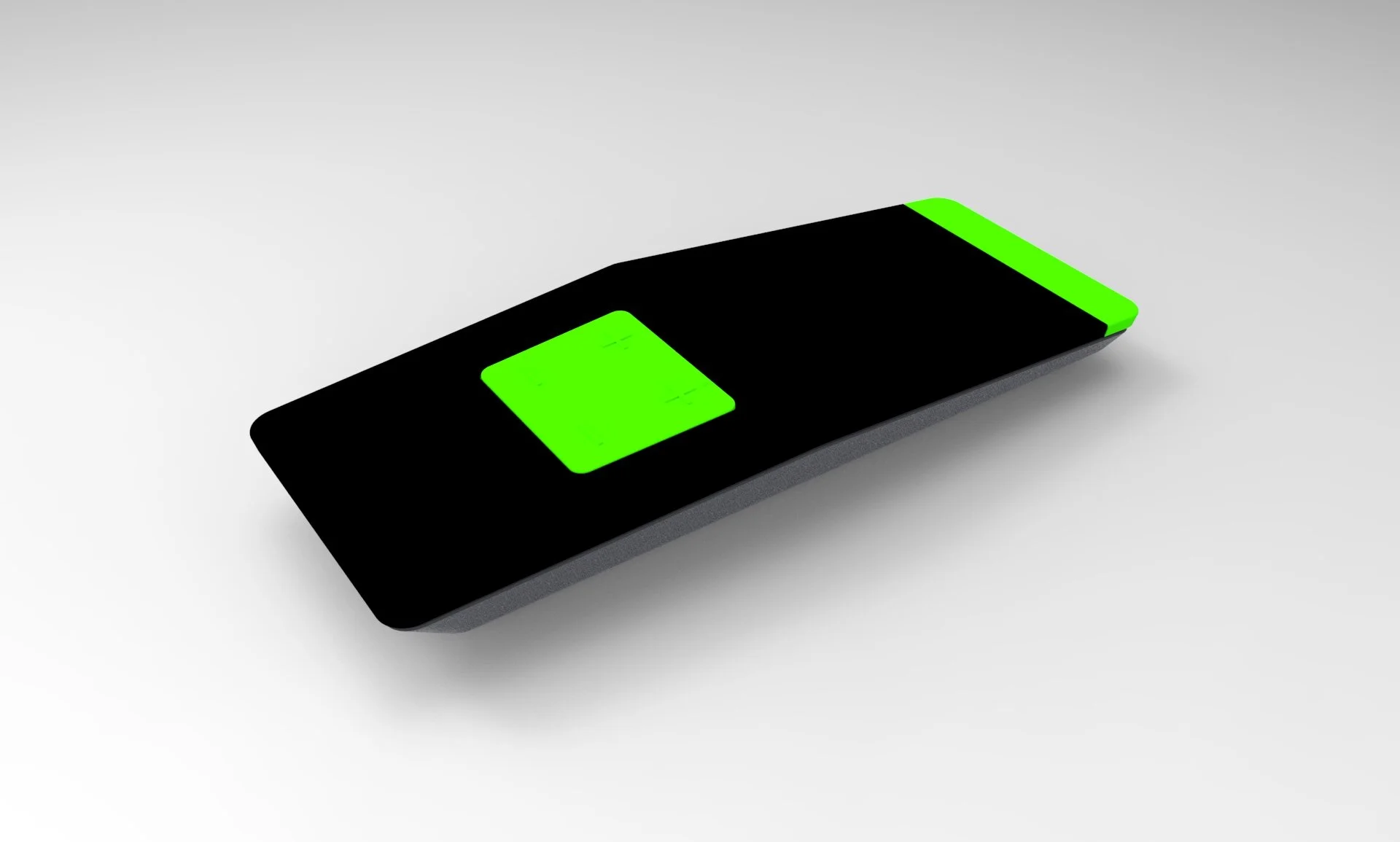

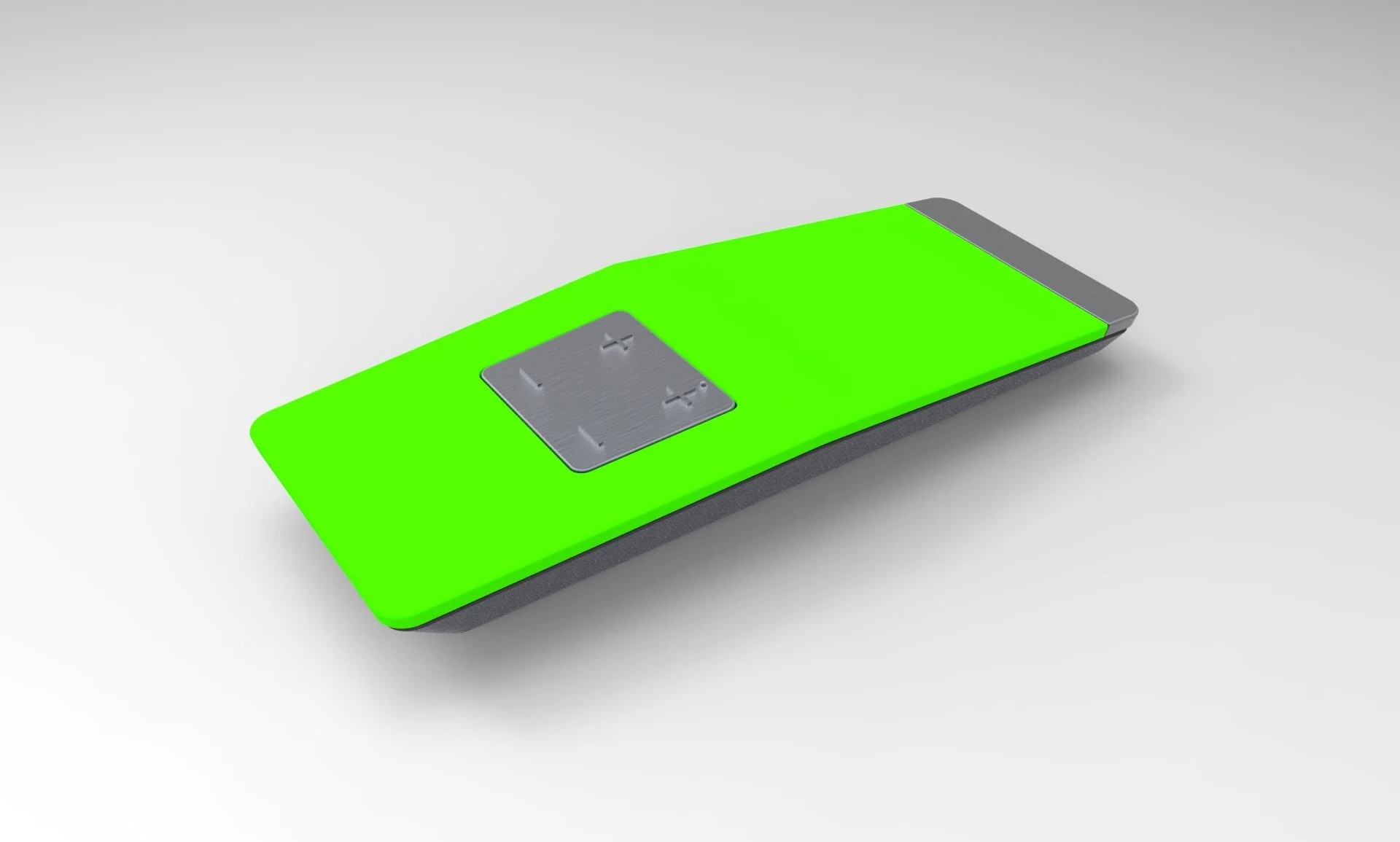

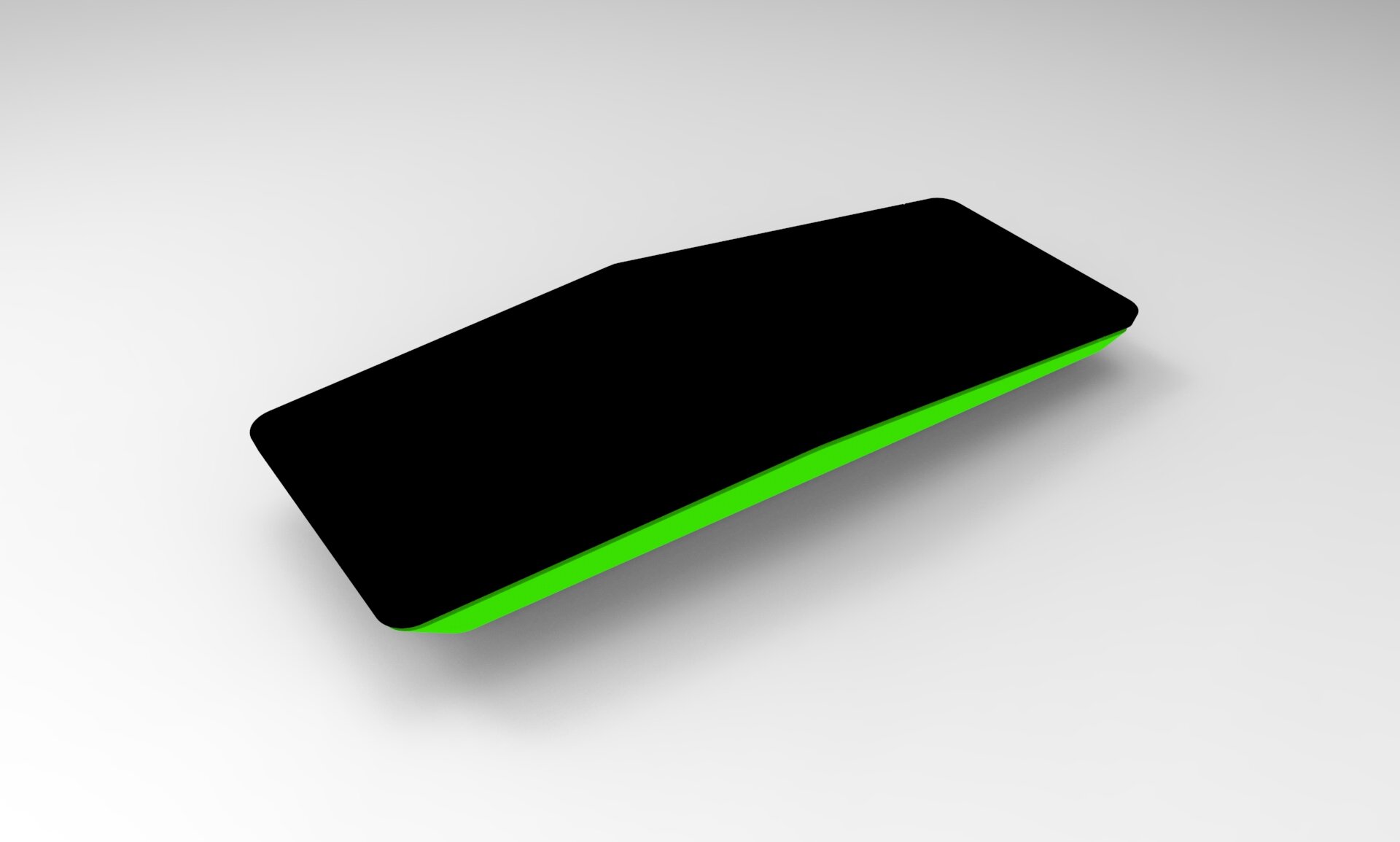

Green Material was used on different housings and rendered to have precise outlines in Photoshop. These were used as mask and the housings were later color corrected to selected PMS colors from Sony.
